AMACODER C 27

Revolutionary Serialization Machine For Packaging

The Hicof AMACODER-C is a revolutionary serialization machine based on an intermittent box transport mechanism. The line, made with Swiss craftsmanship is only 0.77 m long, providing high quality output and low reject rates.

AMACODER-C HIGHLIGHTS

Automatic cartoner lines operate either intermittent (indexed) or continuous. A continuous coding machine for packaging is capable of very high box throughput but is mostly expensive and large. On the other hand, intermittent running cartoner machines are compact, cost effective but usually limited to a speed of 150 packs/min what is sufficient for most applications. As next process step, a legally mandated serialization code is inline printed and for European markets a tamper evident label is applied on the product package.

Hicof is the first and only company, offering coding lines which work intermittently. The unique, patent applied concept of the Hicof AMACODER is the use of pushers for transporting the boxes through the machine. Therefore, no conventional conveyor is used.

It works as follows: Boxes, coming from an upstream machine e.g. a cartoner or checkweigher, are transported by a conveyor to the infeed plate of the Amacoder. A feeding pusher from the side shifts incoming boxes laterally onto the transport slide, in front of a second pusher which shifts the boxes through the Amacoder. After a stroke of the pusher, it retracts to its initial position, leaving room for new boxes, introduced from the side. This cycle is repeated permanently, resulting in an indexed, highly controlled movement of the stack of boxes through the machine.

The AMACODER-C is a proven pharma serialization machine with a wide range of options available. Reaching from checkweigher integration to various feeding options.

Serialization Machine

HOW TO GET SUPERIOR CODING QUALITY OUT OF THE SERIALIZATION MACHINE

The Amacoder delivers a very high coding quality as shown in the image.

The reason for this high coding quality is as follows:

  • As the boxes are touching each other, the transport speed of the boxes is much lower than with conventional conveyor machines where a space between boxes is required
  • Very controlled movement of the boxes as they are guided from all sides during the flow through the machine
  • The servo controlled pusher is extremely precise in reproducing positions, speed and acceleration
  • A long distance between the print heads and the camera ensure complete drying of the ink, a prerequisite for correct barcode grading according ISO 15415 grading by the inspection camera
amacoder prin3

AMACODER-C MODELS

AMACODER C150
Serialization Machine

The AMACODER-C150 is the ideal coding machine for packaging to integrate into automatic lines. Offering economic design with fast changeover times. The AMACODER-C150 is ideally combined with the AMAPACKER-S150 to offer seamless pharma serialization with aggregation.

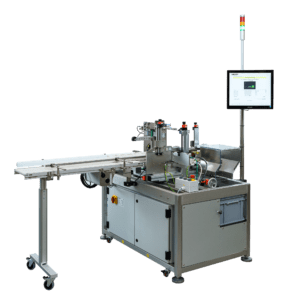

AMACODER C50
AMACODER C50 FREIGESTELLT LR

The AMACODER-C50 is the ideal coding machine for entry level performance. Offering super economic design purely based on pneumatic drives with fast changeover times. The AMACODER-C50 is ideally combined with the AMAJOINER-20 to offer seamless pharma serialization with aggregation.

THE LABEL CREATOR

Hicof AMACENA features a build-in web based label creator to create and adjust all print layouts for AMACODERS, and all connected tertiary label printers. The label creator allows GMP compliant change control of all label parameters across the enterprise.

ONE SYSTEM

Hicof AMACENA is a uniform system covering all serialization related topics in the enterprise. The solution works as monoblock which allows the customer to use the same user interfaces across AMACENA. This reduces efforts in training and operations.

FUNCTIONALITIES

AS2

SFTP

REST API

NMPAB/T

Webservice

INTERFACING

Hicof AMACENA allows to integrate the solution with in-house IT, external partners and governmental systems. The solution features an easy to use interface engine to quickly set new connections.

SUPPORT

The HICOF Machines offer in combination with AMACENA  an integrated IT-backbone, starting at machine level from the devices as printers, cameras and sensors up to data interfaces of governmental servers. In case of an issue, our experts have instantaneously access through remote access to all relevant parameters across all IT-servers down to the PLC, allowing a seamless and immediate support. This is the opposite of the conventional ISA-95 environment with several software and machine suppliers in which each service engineer has only access to his fraction of data, making a comprehensive root cause analysis extremely cumbersome as he has to synchronize with other involved vendors.

Hicof solves the issue by offering

One System, One Supplier, One Responsibility!
